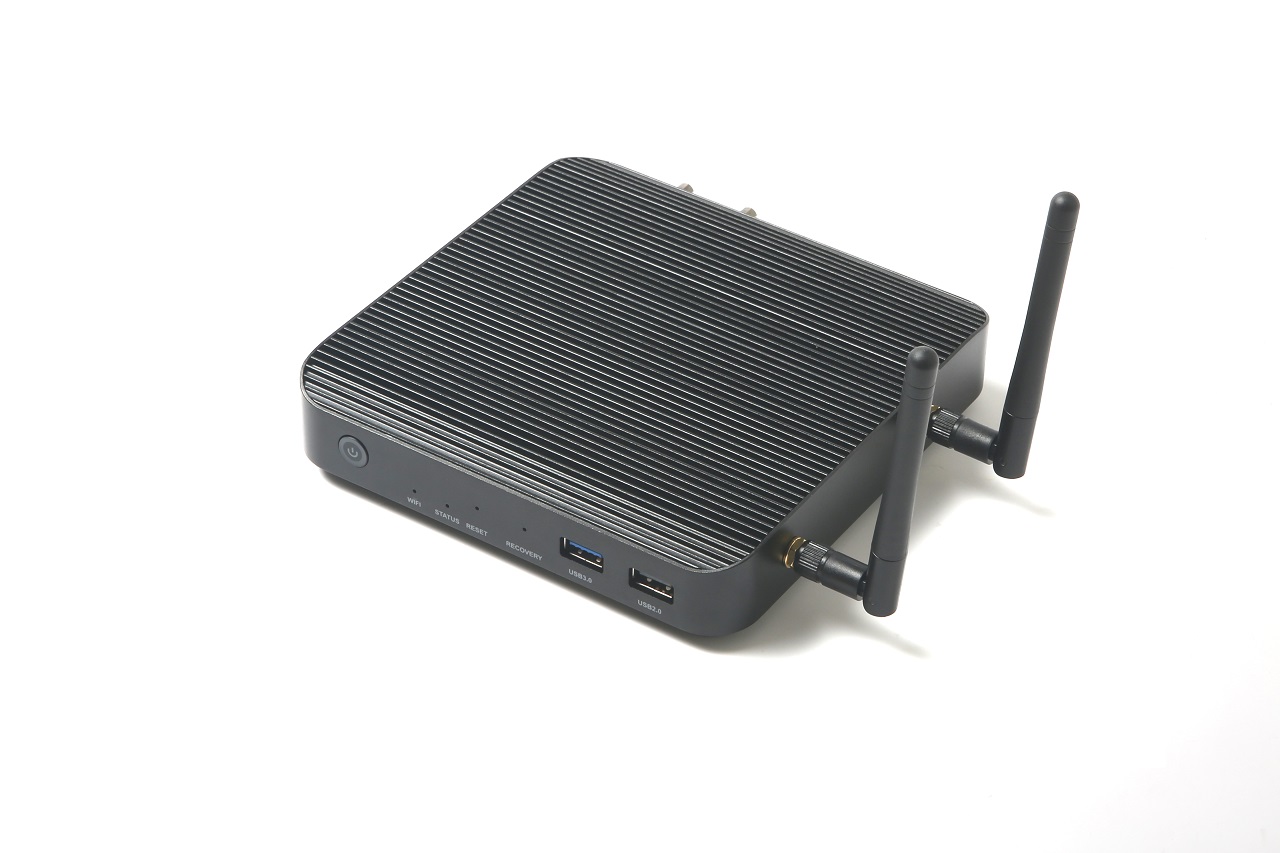

The RIA 425 Jetson Xavier NX

The Reycom IoT Appliance - RIA 425 Jetson Xavier NX offers an NVIDIA Jetson Xavier NX SoM in combination with NV Volta 384-core GPU. You get the power of 384 NVIDIA CUDA® computing units, 48 Tensor computing units, 6 Carmel ARM CPUs and two NVDLA (NVIDIA Deep Learning Accelerator) engines. It supports Nvidia Linux optimized by Reycom and offers advanced processing power, WLAN, Bluetooth (optional), HDMI, USB3 and much more. The RIA 425 Jetson Xavier NX is ideally suited for applications in the field of ML, robotics and AI thanks to the optimized computing power.

Features

Processor

NVIDIA Jetson Xavier NX SoM, NV Volta 384-core GPU with 48 Tensor Cores

Security

Trusted Platform Module (TPM) – Azure connection , Trusted Execution Environment.

Memory/Storage

8GB 64-bit LPDDR4 and 16GB eMMC flash on Jetson Nano SoM, 64GB eMMC flash onboard

Display

2x HDMI 2.0 (4096 x 2160 @60Hz) w/lock-screw

Audio

8-ch digital audio via HDMI, 3.5mm audio jack

Connectivity

IEEE 802.11ac WIFI based on Intel AC 3165 M.2, 1 x USB 3.0 type-A, 1 x USB 2.0 type-A ,1 x COM port,1 x Gigabit Ethernet port

OS

Nvidia Linux, on request K3OS and OTA update
